Welding is a fundamental process in countless industries, joining metals to create everything from skyscrapers to intricate works of art. Among the diverse array of welding techniques, Metal Inert Gas (MIG) welding, also known as Gas Metal Arc Welding (GMAW), stands out as a versatile and widely adopted method. At its core, MIG welding involves creating an electric arc between a continuously fed wire electrode and the workpiece, melting the metals and fusing them together, all while a shielding gas protects the weld pool from atmospheric contamination.
Compared to other common welding techniques like Tungsten Inert Gas (TIG) welding and Shielded Metal Arc Welding (SMAW, or "stick welding"), MIG offers a compelling balance of speed, ease of use, and adaptability. While TIG is renowned for its precision and clean welds on thin materials, and stick welding is valued for its portability and effectiveness in outdoor conditions, MIG welding generally provides higher deposition rates and can be simpler for beginners to learn, making it a popular choice for a broad spectrum of applications.
The journey of MIG welding began in the 1940s, initially developed for welding aluminum. Over the decades, significant advancements in power sources, wire electrodes, and shielding gases have transformed it into the highly efficient and adaptable process we know today. From its early specialized uses, MIG welding has evolved to become a cornerstone of modern manufacturing and fabrication, continually adapting to new materials and production demands.

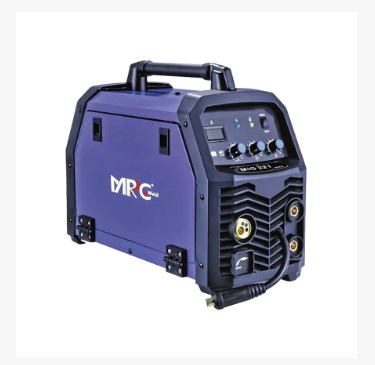

Understanding the inner workings of a MIG welding machine is key to appreciating its efficiency and versatility. The process relies on a coordinated interplay of several core components to achieve a strong, consistent weld.
A typical MIG welding system consists of the following essential parts:
Power System: This is the heart of the welder, providing the electrical current necessary to create and sustain the welding arc. Most MIG welders utilize a constant voltage (CV) power source, which means the voltage remains relatively stable while the current adjusts automatically in response to changes in arc length. This self-regulating nature simplifies the welding process for the operator.
Wire Feed Mechanism: Critical for continuous operation, the wire feeder pulls the welding wire from a spool and pushes it through the welding gun at a precisely controlled speed. This speed directly influences the welding current and the amount of filler material deposited into the weld. Drive rollers, often with different grooves for various wire types (solid or flux-cored), ensure a smooth and consistent feed.
Shielding Gas Supply: To prevent atmospheric contamination of the molten weld pool, a continuous flow of shielding gas is crucial. This typically involves a gas cylinder (containing inert gases like argon or helium, or active gases like carbon dioxide or argon/CO₂ mixtures) connected to a regulator that controls the gas flow rate. A hose then delivers the gas to the welding gun.
Welding Gun with Cooling System: The welding gun, or torch, is the handheld device that the welder manipulates. It houses the contact tip, which makes electrical contact with the welding wire, transferring the current. The gun also has a nozzle that directs the shielding gas around the arc and weld pool. For higher amperage applications, a water cooling system might be integrated into the gun to prevent overheating.
Ground Clamp: This essential safety and functionality component connects the workpiece to the welding machine, completing the electrical circuit.
The MIG welding process unfolds as follows:
Arc Initiation and Metal Melting: When the trigger on the welding gun is pressed, the wire feed mechanism starts pushing the wire electrode forward, and the shielding gas begins to flow. As the wire touches the workpiece, a short circuit occurs, causing a surge of current. This rapidly creates an electric arc between the tip of the wire and the base metal. The intense heat of this arc instantly melts both the end of the continuously fed wire electrode and the surface of the workpiece, forming a molten pool of metal, known as the weld pool.
Role of Shielding Gas: Simultaneously with arc initiation, the shielding gas is directed from the nozzle of the welding gun to envelop the weld pool. This blanket of gas performs several vital functions:
Prevents Oxidation: It displaces oxygen, nitrogen, and other reactive gases from the atmosphere, which would otherwise combine with the molten metal, leading to defects like porosity, brittleness, and a weakened weld.
Stabilizes the Arc: The consistent flow of gas helps to maintain a stable and consistent arc, preventing it from wandering or becoming erratic.
Improves Weld Quality: By protecting the weld pool, the shielding gas ensures a clean, strong, and visually appealing weld bead with minimal spatter.
Metal Transfer: As the wire melts, the molten metal is transferred across the arc to the weld pool. This transfer can occur in various modes, including short-circuit (most common for thinner materials), globular, spray, and pulsed spray, each suited to different material thicknesses and applications.
Achieving optimal MIG welds requires careful adjustment of several key parameters:
Current/Voltage Regulation: In constant voltage MIG welding, the voltage primarily controls the arc length and the overall width and flatness of the weld bead. A higher voltage creates a longer arc and a wider, flatter bead, while a lower voltage results in a shorter arc and a narrower, more convex bead. The wire feed speed directly correlates to the welding current; increasing the wire feed speed increases the amperage, leading to more heat input and deeper penetration. The interplay between voltage and wire feed speed is crucial for a stable arc and a quality weld.
Wire Feed Speed: As mentioned, this parameter dictates the amount of filler material being fed into the weld pool and, consequently, the welding current. It must be carefully balanced with the voltage to ensure proper fusion and avoid issues like burn-through or lack of penetration.
Gas Flow Rate: The flow rate of the shielding gas is critical for adequate protection of the weld pool. Too low a flow rate can lead to porosity and contamination, while too high a flow rate can create turbulence, drawing in ambient air and compromising the shield. The ideal flow rate depends on the type of gas, nozzle size, and welding conditions, but typically falls within a specific range for different applications.
The versatility and efficiency of MIG welding have made it an indispensable process across a vast array of industries and applications. Its ability to weld a wide range of metals and thicknesses, combined with its relative ease of use, positions it as a preferred method for both high-volume production and intricate custom work.
MIG welding is a cornerstone of modern industrial manufacturing, contributing to the assembly of numerous products and structures:
Automotive Manufacturing: This sector relies heavily on MIG welding for fabricating vehicle bodies, chassis components, and exhaust systems. Its speed and ability to automate make it ideal for the high-volume production lines characteristic of car manufacturing, ensuring strong and reliable joints for passenger safety and structural integrity.
Aerospace: While aerospace often demands highly specialized welding techniques, MIG is utilized for certain applications involving aluminum alloys and titanium, particularly in non-critical structural components or repair work where its efficiency can be leveraged. Precise control and specialized shielding gases are often employed in these demanding environments.
Heavy Machinery and Equipment: From agricultural machinery to construction equipment and industrial robots, MIG welding is crucial for assembling robust and durable components that can withstand demanding operational conditions. The ability to achieve deep penetration and strong welds on thick sections of metal is particularly valuable here.
The construction industry significantly benefits from MIG welding's capabilities for fabricating and erecting large-scale structures:
Steel Structure Welding: MIG welding is extensively used in the construction of buildings, bridges, and other large steel structures. Its high deposition rates and ability to produce strong, clean welds contribute to the efficiency and structural integrity of these projects. Both shop fabrication and on-site welding often employ MIG processes.
Piping and HVAC Systems: For joining pipes and fabricating components for heating, ventilation, and air conditioning (HVAC) systems, MIG welding offers a reliable and efficient solution, particularly for stainless steel and carbon steel piping.
Beyond industrial applications, MIG welding has become increasingly accessible and popular for personal projects and repairs:
Home Repair: Homeowners and hobbyists often turn to smaller MIG welders for various repair tasks, such as fixing lawnmowers, fences, or metal furniture. Its relative ease of learning compared to other welding methods makes it attractive for do-it-yourself enthusiasts.
Metal Art and Fabrication: Artists and craftspeople use MIG welding to create sculptures, custom metal furniture, and decorative items. The precision and control offered by MIG allow for detailed work and strong, aesthetically pleasing joints.
Automotive Repair: From patching rust holes to repairing frames and custom exhaust work, MIG welding is a go-to choice for many automotive repair shops and enthusiasts due to its speed and ability to handle various gauges of sheet metal.
While often associated with steel, MIG welding can be adapted to a wide range of materials:
Stainless Steel: With the appropriate shielding gas (usually an argon-rich mixture with a small percentage of CO₂ or oxygen) and specialized stainless steel welding wire, MIG can produce high-quality welds on various grades of stainless steel, crucial for food processing equipment, medical instruments, and architectural features.
Aluminum: Welding aluminum with MIG requires pure argon shielding gas, a specific type of wire (often 4043 or 5356 aluminum alloy), and usually a "spool gun" or push-pull gun to prevent wire feeding issues due to aluminum's softness. It's widely used for aluminum boat repair, trailer fabrication, and automotive parts.
Copper and Copper Alloys: While more challenging due to copper's high thermal conductivity, MIG welding can be successfully employed for copper and its alloys (like bronze and brass) with the right parameters, shielding gas (often argon or helium mixtures), and specialized wires.
Other Non-Ferrous Metals: With advancements in technology and specialized consumables, MIG welding is also finding applications in joining other non-ferrous metals and alloys, expanding its utility across diverse manufacturing needs.
Like any manufacturing process, MIG welding comes with its own set of advantages that make it highly desirable for certain applications, as well as limitations that need to be considered.
The widespread adoption of MIG welding is largely due to its significant benefits:
High Efficiency, Suitable for Automation: MIG welding boasts high deposition rates, meaning it can lay down weld metal much faster than processes like stick or TIG welding. The continuous wire feed eliminates the need for frequent electrode changes, significantly reducing downtime and increasing productivity. This continuous nature makes MIG highly amenable to automation and robotic welding, which is crucial in high-volume manufacturing environments.
Versatile Material Range (Thin to Thick): MIG welding is remarkably versatile in handling a broad spectrum of material thicknesses. With appropriate parameter adjustments and wire selection, it can effectively weld thin sheet metal (down to 24 gauge or thinner) commonly found in automotive bodywork, as well as thick structural steel plates used in heavy construction.
High Weld Quality, Minimal Spatter: When properly set up and operated, MIG welding produces clean, strong welds with excellent bead appearance. The shielding gas protection minimizes the risk of atmospheric contamination, leading to fewer defects like porosity. Compared to stick welding, MIG typically generates significantly less spatter, reducing post-weld cleanup time and improving overall aesthetics.
Ease of Use (Relative to Other Processes): While still requiring skill, MIG welding is generally considered easier for beginners to learn and master compared to TIG welding, which demands high hand-eye coordination for separate filler rod manipulation, or stick welding, which requires constant arc length management. The self-regulating nature of constant voltage power sources in MIG simplifies parameter control.
All-Position Welding Capability: With appropriate wire and gas selections, and skilled technique, MIG welding can be performed in all welding positions (flat, horizontal, vertical, overhead), offering flexibility in fabrication and repair scenarios.
Despite its numerous benefits, MIG welding also presents certain limitations:
Higher Equipment Cost: The initial investment for a complete MIG welding setup—including the power source, wire feeder, gas cylinder, regulator, and gun—is generally higher than for a basic stick welder. While portable units are available, industrial MIG systems can be a significant capital expenditure.
Requires Protection from Environmental Factors: The shielding gas is crucial for MIG welding, but it is highly susceptible to disruption from external environmental factors. Wind, drafts, or even strong ventilation in an indoor setting can blow away the protective gas, leading to porosity, poor weld quality, and contamination. This limits its effectiveness in outdoor or windy conditions without significant windbreaks.
Shielding Gas Cost and Management Complexity: The ongoing cost of shielding gas cylinders (whether inert or active gas) and their associated refilling or exchange services can add to the operational expenses. Furthermore, managing gas inventory, ensuring proper connections, and preventing leaks adds a layer of complexity not present in flux-cored arc welding (which uses self-shielding wire) or stick welding.
Less Portable for Some Applications: While smaller, portable MIG welders exist, a full MIG setup with a gas cylinder can be cumbersome and less portable than a lightweight stick welder. This can be a disadvantage for field repair jobs or remote site work where mobility is a primary concern.
Limited Penetration on Very Thick Materials (Compared to Some Arc Welding Methods): While MIG can weld thick materials, achieving very deep penetration on extremely thick sections might require multiple passes or specialized techniques like pulsed MIG, or other processes like submerged arc welding (SAW) might be more efficient for such extreme thicknesses.
Choosing the right MIG welding machine and mastering its operation are critical steps for achieving quality welds and ensuring safety.
Selecting the ideal MIG welder involves considering your specific needs and the types of projects you'll be undertaking:
Power Output (Amperage) and Material Thickness: The most crucial factor is the welder's amperage range, which dictates the maximum material thickness it can effectively weld.
Household/Hobby Use (110V/120V): For light fabrication, auto body repair, and thin sheet metal (e.g., up to 1/8 inch or 3-4mm), a machine with an output of 90-140 amps is typically sufficient. These often run on standard household power.
Light Industrial/Heavy Hobby Use (220V/240V or Dual Voltage): For thicker materials (e.g., up to 1/4 inch or 6mm) and more demanding tasks, consider welders in the 180-250 amp range. Dual voltage machines offer flexibility.
Industrial/Professional Use (220V+/Three-Phase): For continuous heavy-duty welding on thick plates (e.g., 3/8 inch or 10mm and above), machines delivering 250+ amps are necessary.
Gas Type (Pure Argon vs. Mixed Gases): Your material dictates the required shielding gas:
Mild Steel: An active gas mixture, typically 75% Argon / 25% CO₂ (C25), is most common, providing good arc stability and penetration. Pure CO₂ can also be used but results in more spatter and a colder arc.
Stainless Steel: Requires an argon-rich mixture, usually with 1-2% CO₂ or oxygen, to maintain corrosion resistance and appearance.
Aluminum: Demands 100% pure Argon. You'll also need a specific aluminum wire and possibly a spool gun for reliable feeding.
Duty Cycle: This indicates how long a welder can operate at a given amperage within a 10-minute period before needing to cool down. For example, a 60% duty cycle at 150 amps means the machine can weld continuously for 6 minutes at 150 amps before needing 4 minutes to cool. Higher duty cycles are essential for industrial production.
Features: Consider features like infinite voltage control (for fine-tuning), pulsed MIG capabilities (for better control on thin or sensitive materials like aluminum), spool gun compatibility, and digital displays.
Welding involves significant hazards, making strict adherence to safety protocols paramount:
Personal Protective Equipment (PPE): Always wear appropriate PPE:
Welding Helmet: Essential for protecting your eyes and face from intense UV/IR radiation and sparks. Use a helmet with an auto-darkening lens or a fixed-shade lens appropriate for the amperage.
Welding Gloves: Heavy-duty, heat-resistant gloves are vital for protecting hands from heat, sparks, and electrical shock.
Fire-Resistant Clothing: Wear long-sleeved shirts and pants made of natural fibers (cotton or wool) or flame-retardant materials. Avoid synthetics, which can melt and cause severe burns.
Closed-Toe Boots: Leather or other robust, non-slip footwear is required.
Ventilation: Ensure adequate ventilation to remove welding fumes, which can be hazardous. Work in a well-ventilated area, use fume extractors, or wear an air-purifying respirator if necessary.
Fire Prevention:
Clear the work area of any flammable materials (wood, paper, chemicals) before welding.
Have a fire extinguisher readily available and know how to use it.
Be aware of sparks traveling and igniting hidden combustibles.
Electrical Safety: Always ensure your welder is properly grounded. Inspect cables for damage before use. Never weld in wet conditions.
Gas Cylinder Safety: Secure gas cylinders to prevent them from falling. Store them in well-ventilated areas away from heat sources.
Insufficient Gas Flow/No Gas: A common cause of porosity (small holes in the weld). Always check gas supply and flow rate before and during welding. A simple check is to listen for the gas flow and visually inspect for a consistent stream.
Improper Parameter Settings: Voltage and wire feed speed must be balanced. Too high a voltage or too slow a wire feed can lead to a long, erratic arc and poor penetration. Too low a voltage or too fast a wire feed can cause the wire to "stub out" and push the gun back, or create excessive spatter. Listen to the arc—a good MIG arc should sound like a consistent, sizzling bacon.
Incorrect Stick Out: The distance the welding wire extends from the contact tip (known as "stick out") affects resistance heating and penetration. Too long a stick out leads to less penetration and more spatter; too short can cause the tip to melt.
Poor Joint Preparation: Dirty, rusty, or painted metal will lead to contaminated welds. Always clean the base metal thoroughly before welding.
Wrong Travel Speed: Moving too fast results in a narrow, convex bead with insufficient penetration. Moving too slow leads to excessive heat input, a wide bead, and potential burn-through.
Regular maintenance helps ensure optimal performance and longevity of your MIG welder:
Welding Gun Cleaning:
Regularly clean the nozzle to remove spatter, which can obstruct gas flow.
Inspect and replace the contact tip frequently, as it wears out. A worn tip can cause poor arc stability and wire feeding issues.
Check the diffuser for spatter and clean it to ensure even gas distribution.
Wire Feed Mechanism Care: Keep the drive rollers clean and free of debris. Ensure the tension on the drive rollers is set correctly—too loose and the wire slips; too tight and it deforms the wire, leading to feeding problems. Replace worn drive rollers.
Common Problems and Solutions:
Arc Instability/Erratic Arc: Check gas flow, contact tip condition, ground clamp connection, and parameter settings.
Porosity (Holes in Weld): Almost always a gas issue—check gas cylinder, flow rate, leaks, and ensure no drafts are blowing gas away. Could also be dirty base metal.
Excessive Spatter: Often due to incorrect voltage/wire feed speed balance (typically too low voltage or too high wire speed), incorrect gas mixture, or a worn contact tip.
Wire Feeding Problems: Check drive roller tension, liner condition (it can get clogged), contact tip size matching wire diameter, and ensure the wire spool isn't tangled.
Lack of Penetration: Usually too low amperage (wire feed speed) or too fast travel speed.
Burn-Through: Too much heat input (too high amperage/wire feed speed or too slow travel speed) for the material thickness.
MIG welding, while already a mature and widely adopted technology, is not static. Driven by the demands of advanced manufacturing, environmental concerns, and the ongoing digital revolution, the future of MIG welding promises further innovation, efficiency, and integration.
The core principles of MIG welding will remain, but the methods of control, precision, and material compatibility are set to evolve significantly:
Digitalization and Smart Welding Systems: The trend towards "smart manufacturing" is profoundly impacting welding. Future MIG welders will feature more sophisticated digital controls, allowing for precise and repeatable parameter settings. Expect enhanced integration with sensors that monitor arc conditions, temperature, and even weld pool dynamics in real-time. This data will enable immediate feedback and adjustments, leading to consistently higher weld quality and reduced rework.
AI Parameter Adjustment and Optimization: Artificial intelligence and machine learning will play an increasingly vital role. AI algorithms will be trained on vast datasets of successful welds, allowing machines to recommend optimal parameters for specific materials, thicknesses, and joint configurations. In more advanced systems, AI could even dynamically adjust parameters during welding to compensate for variations in material or fit-up, significantly reducing the skill barrier for complex welds.
Internet of Things (IoT) Monitoring: Welders will become connected devices within a broader IoT ecosystem. This means remote monitoring of welding operations, predictive maintenance alerts for equipment, and data collection for process optimization across multiple machines or production lines. This level of connectivity will enable more efficient resource management and proactive problem-solving.
Novel Shielding Gases and Filler Materials: Research continues into developing new shielding gas mixtures that offer improved arc stability, reduced spatter, enhanced penetration, and better mechanical properties for specific alloys. Similarly, advancements in wire metallurgy will lead to filler materials with superior strength, ductility, corrosion resistance, and compatibility with new generation advanced high-strength steels (AHSS) and other cutting-edge alloys.
Advanced Waveform Control (Pulsed MIG Evolution): Pulsed MIG technology will continue to evolve, offering even finer control over heat input and metal transfer. This will enable more precise welding of thin materials, difficult-to-weld alloys, and out-of-position welds, further minimizing defects like distortion and burn-through. Next-generation pulse programs will be more intuitive and adaptable.
As global focus shifts towards sustainability, welding technologies are also adapting to minimize their environmental footprint and energy consumption:
Reduced Gas Consumption Techniques: Innovations aimed at optimizing gas delivery and minimizing waste will become more prevalent. This could include smarter gas flow control systems that precisely deliver the required amount, or even localized shielding solutions that create a more contained protective environment, thereby reducing overall gas usage and associated costs.
Energy-Efficient Power Sources: The drive for energy efficiency will lead to more inverter-based power sources that are smaller, lighter, and consume less energy than traditional transformer-based machines. Research into more efficient arc generation and power delivery systems will contribute to lower electricity consumption during welding operations.
Integration with Renewable Energy: While not directly a MIG welding machine development, the broader trend of industrial processes utilizing renewable energy sources will extend to welding facilities. This involves power grids shifting to solar, wind, and other sustainable sources, reducing the carbon footprint associated with electricity consumption for welding.
The ongoing fourth industrial revolution (Industry 4.0) will further accelerate the integration of MIG welding with automation and robotics:
Increased Popularity of MIG Welding Robots in Industry 4.0: As industries embrace smart factories and interconnected production systems, MIG welding robots will become even more ubiquitous. Their ability to deliver consistent, high-quality welds at high speeds, combined with their tireless operation, makes them ideal for mass production and repetitive tasks. They can be integrated into larger automated lines, contributing to overall production efficiency and reliability.
Collaborative Robots (Cobots): Beyond traditional industrial robots, collaborative robots (cobots) equipped with MIG welding capabilities will see increased adoption. These robots can work alongside human operators, taking over repetitive or ergonomically challenging welding tasks, while humans focus on more complex setups, quality control, or specialized welds. This blend of human skill and robotic precision offers new levels of flexibility and productivity.
Offline Programming and Simulation: Advances in software for offline programming and simulation will allow manufacturers to design and test welding paths and parameters virtually before any physical welding takes place. This reduces setup time, minimizes material waste, and optimizes production flows, further enhancing the efficiency of automated MIG welding systems.
In conclusion, the future of MIG welding is bright, characterized by increasing intelligence, efficiency, and integration into the broader digital manufacturing landscape. These ongoing developments will ensure MIG welding remains a cornerstone of metal fabrication for decades to come, adapting to new challenges and expanding its capabilities across an ever-wider range of applications.
